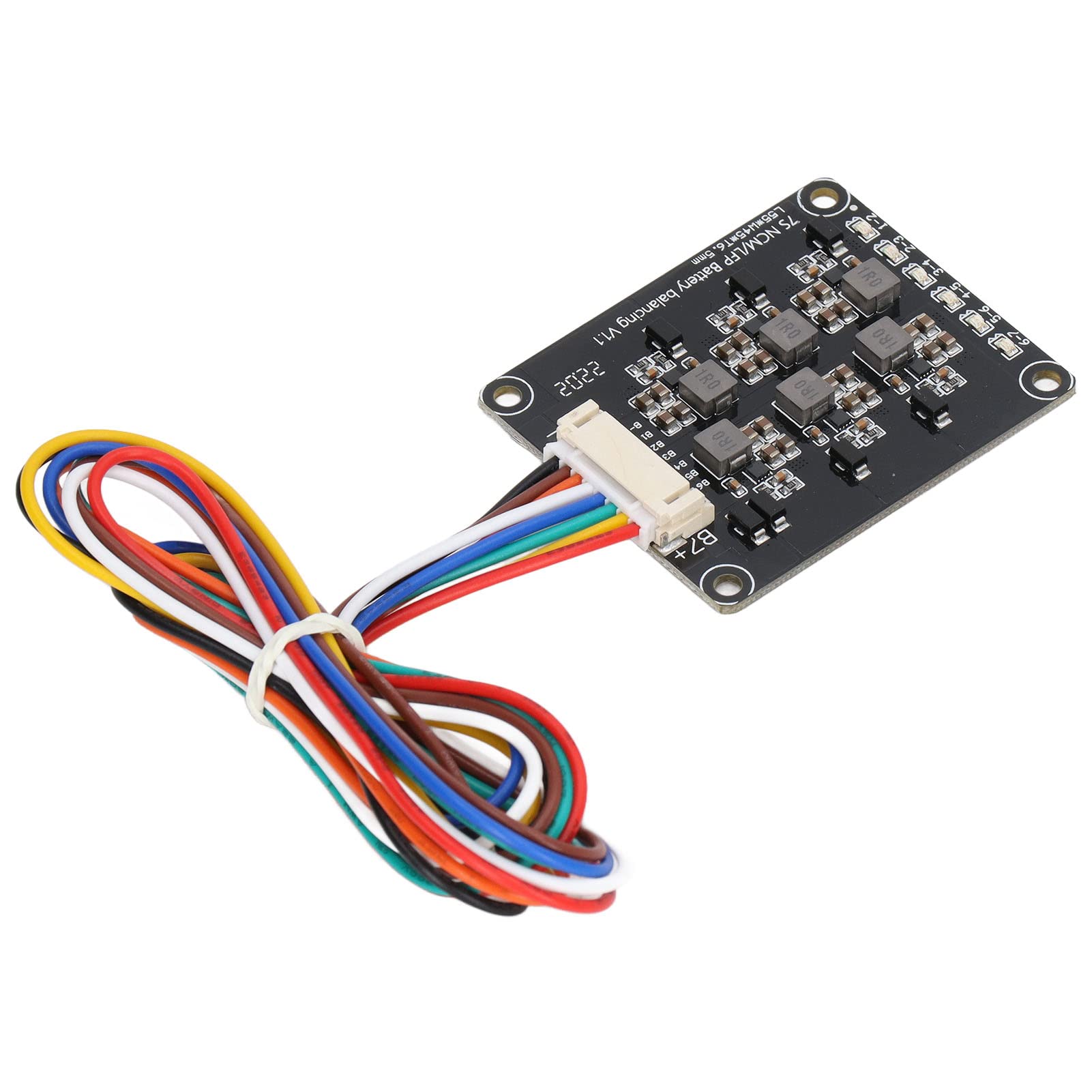

Omabeta BMS Balancer - High Accuracy Battery Active Equalizer with Low Internal Resistance MOS & Cable for LFP Batteries (7S) | Ideal for Solar Energy Storage, RV & Marine Battery Maintenance

Product Description

Feature:1. HIGH ACCURACY BALANCE: Balance voltage accuracy within 30mv, bring high accuracy energy transmission balance, exclusive balance IC2. PROTECTION BOARD AUXILIARY: The balance board is not a BMS protection board, but an auxiliary of the protection board, so no matter how bad the battery test you use, it can be used, but there is no overvoltage or overdischarge protection function3. SMALLER VOLTAGE DIFFERENCE: Built in improved ultra low internal resistance MOS, the balance current is 0-1.2A, and the battery voltage difference is smaller4. LOW STATIC POWER CONSUMPTION: Battery active equalizer possess smaller current, the static power consumption does not exceed 20uA, with balance instructions5. 1.2A CURRENT: Inductive energy transmission equalization board has 1.2A equalization current, slightly lower accuracyHow to Use:1. When the balance indicator light is on, the balance work is on.2. When the balance indicator light is off, the balance circuit is dormant.3. When the balance indicator light is flashing, power failure or circuit failure.Specification:Item Type: Battery Active EqualizerApplicable Battery: NCM(Li ion) or LFP, not suitable for LTO.Single Cell Voltage: 3.0-4.2VRecommended Battery Capacity: Below 30AHVoltage Balance Accuracy: 30mV between adjacent voltages (typ.)Equalization Method: It is detected that the voltage difference between adjacent batteries is greater than 0.1V to trigger the equalization start, and the voltage difference between adjacent batteries is less than 0.03V to stop workingBalance Current: 0.1V voltage difference 0.5A balance current, when the voltage difference is above 0.2V, the maximum ba
